Pinex® Anchor Piles

Pinex® Anchor Piles are part of CHH Woodproducts structural outdoor product range.

Pinex Anchor Piles are treated to H5 and are ideal for vertical and horizontal loads in residential applications.

Features & Benefits

  • Anchor Piles are the perfect solution for many outdoor projects
  • Manufactured from sustainably-grown NZ plantation pine
  • Graded in accordance with NZS 3631 and tested in accordance with NZS 3605
  • Suitable in fully-exposed situations
  • Specified and sold in dry size but produced and provided wet
  • Available FSC® CoC Certified on request (Certificate Numbers: SCS-COC-001317, SCS-COC-00403 & SCS-COC-001321)

House Piles & Anchor Piles:

  • Manufactured from sustainably-grown NZ plantation pine
  • If House Piles are specified they can be substituted with Anchor Piles. If Anchor Piles are specified they cannot be substituted with House Piles
  • Anchor Piles resist lateral and vertical loads to the requirements of NZS 3604
  • Bracing requirements depend on circumstances
  • Anchor Piles are subject to proof testing
  • When tested, Anchor Piles exceeded the strength and stiffness tests required by NZS 3605
  • Treated to H5 ensuring that they will meet requirements of New Zealand Building Code for Durability

Compliance

The following are the most relevant standards:

  • NZS3602:2003   Timber and Wood-Based products for use in building
  • NZS3604:2011   Timber Framed Buildings
  • NZS3605:2001   Timber Piles and Poles for use in Building
  • NZS3631:1988   New Zealand Timber Grading Rules
  • NZS3640:2003   Chemical Preservation of Round and Sawn Timber

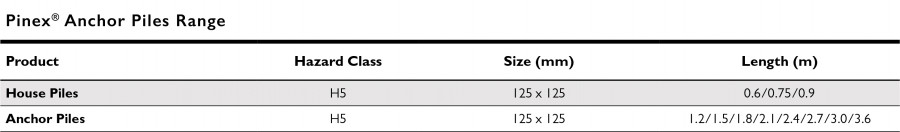

Range

Pinex Table AnchorPiles 6
